型号:【水处理搅拌机】摆线式慢速搅拌机ML型

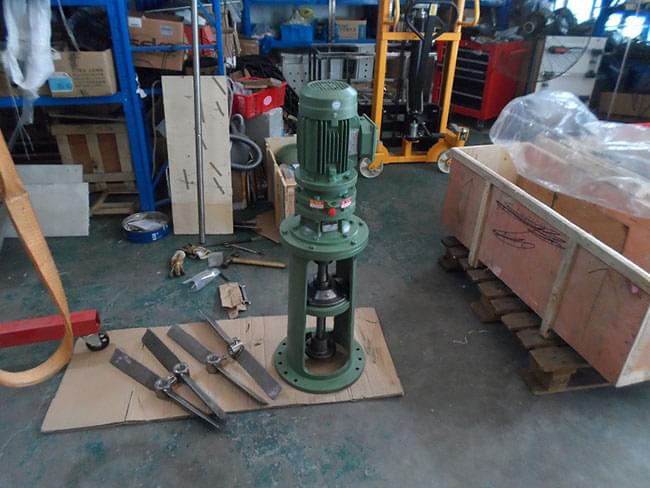

【水处理搅拌机】摆线式慢速搅拌机ML型


【水处理搅拌机】摆线式慢速搅拌机ML型,ML型加药搅拌机资料:

优势:采用ABB电机,无锡减速机,带支架,超耐久性!

1.摆线减速式,马达输出功率0.37-22千瓦,丰富的各种转速和超群的耐久性。

2.不需要多余空间的通用底位置形式,底位置,轻量化构造,容器上部空间狭窄的场合,使用此类型的的搅拌机,能消除许多尺寸制约。得到用户的好评。

3.轴受力部的耐久性是经得起考验的轴的各配合受力部都经过紧密设计,加工,并多次经过负载试验,带着自信提供没有故障的搅拌机。

4.密封形式,可根据用户的要求,制造配套合适的搅拌桨叶的选择,轴封形式,与其相对应的亲里材质,形状,多重丰富合理的标准形式,根据腐蚀性耐药品性能各要点,严格选定。我们一定能够满足客户的各种技术要求。

5.马达是以本相380v4极全开外扇内型为标准的,室外使用的场合请指明。 连轴器是搅拌轴直径为60m/m以上的场合被使用的。直角斜式桨叶在桨叶外径大于1100m/M时,为拖卸式。脱卸式的桨叶也可用于各种合成树脂材料来设定,制作。桨叶通常标准型是2枚式,4枚的情况下,其他另行制作。容器内气体的轴密封。

【水处理搅拌机】摆线式慢速搅拌机ML型装配法兰尺寸表

公制直径(内径)JIS标准用外径mm OD螺孔中心距mm PD孔径 Z数 N
10K 50 A250210124
10K 80A290260128
10K 100A3152851410
10K 125A3603201410
10K 150A3603201410
10K 200A3603201410
10K 300A4354001812
10K 400A4604201812
10K 450A4604201812
10K 500A4954551812
10K 600A5655102412


【水处理搅拌机】摆线式慢速搅拌机ML型特点:运转平稳,搅拌均匀,桨叶及轴均采用SUS304材质,配套液下支座后,可适用于大水量及深水的液体搅拌。适用于给水和排水工程中的混合池、反应池和各种药剂的混合及反应过程的搅拌。

【水处理搅拌机】摆线式慢速搅拌机ML型,ML型性能规格表

型号功率减速比转速RPM搅拌轴桨叶直径大搅拌量装配法兰尺寸 10K备用本身()内是用
轴长mm/轴经mm稀薄液L/中粘液L

Amm/Bmm/全高h(H)mm


ML37-110.371:111271500/253002500/120050A252/300/552
ML37-170.371:17821500/253502500/120050A252/300/552
ML37-230.371:23601500/254002500/120050A290/300/590
ML37-290.371:29481500/256002500/120050A290/300/590
ML37-350.371:35401500/257002500/120050A290/300/590
ML37-430.371:43321500/258002500/120050A290/300/590
ML37-590.371:59231500/259002500/120080A318/300/618
ML55-110.551:111341500/253503500/180050A252/300/552
ML55-170.551:17881500/254003500/180050A252/300/552
ML55-230.551:23651500/254503500/180050A290/300/590
ML55-290.551:29511500/255503500/180050A290/300/590
ML55-350.551:35431500/256503500/180050A290/300/590
ML55-430.551:43351500/257503500/180050A290/300/590
ML55-590.551:43251500/259003500/180080A318/300/618
ML75-110.751:111341500/303505000/250050A331/300/631
ML75-170.751:17881500/304505000/250050A331/300/631
ML75-230.751:23651500/305505000/250050A345/300/645
ML75-290.751:29511500/307005000/250050A345/300/645
ML75-350.751:35431500/308005000/250050A345/300/645
ML75-430.751:43351500/309005000/250080A354/300/654
ML75-590.751:59251500/3010005000/250080A354/300/654
ML150-111.51:111342000/3545010000/5000100A387/300/687
ML150-171.51:17882000/3550010000/5000100A387/300/687
ML150-231.51:23652000/3560010000/5000100A387/300/687
ML150-291.51:29512000/3580010000/5000100A387/300/687
ML150-351.51:35432000/3590010000/5000100A387/300/687
ML150-111.51:11
2000/35
10000/5000100A387/300/687
ML150-431.51:43352000/35100010000/5000100A387/300/687
ML150-591.51:59252000/35120010000/5000125A434/370804
ML150-711.51:71212000/35140010000/5000125A434/550/984
ML150-871.51:87172000/35160010000/5000125A434/550/984
ML220-112.21:111342000/1050015000/7500100A407/300/707
ML220-172.21:17882000/1065015000/7500100A407/300/707
ML220-232.21:23652000/1075015000/7500125A454/300/824
ML220-292.21:29512000/1095015000/7500125A454/300/824
ML220-352.21:35432000/10100015000/7500125A454/300/824
ML220-432.21:43352000/10110015000/7500125A454/300/824
ML220-592.21:59252000/10135015000/7500125A454/550/1071
ML220-712.21:71212000/10150015000/7500125A454/550/1071
ML220-872.21:87172000/10170015000/7500125A454/550/1071
